【NAS玩法】NAS部署服务

givemefivw

2025-04-29

玩机技巧

NAS

前置操作

通过控制面板→共享文件新建docker服务文件夹，所在位置选择硬盘所在的区域，这个docker文件夹用来存放各种服务的配置数据

Clash

1、docker文件夹创建clash目录，把config.yaml文件上传到clash目录

config.yaml文件allow-lan设置为true，external-controller: ‘0.0.0.0:9090’，注意如果上传之后要修改文件，在本地修改后再上传覆盖，直接在nas里面修改内容会出错

2、搜索container注册表，搜索clash和yacd，下载dreamacro/clash、haishanh/yacd，注册表需要网络加速，可以在控制面板→网络→代理服务器设置windows代理

3、点击映像管理，运行clash，勾选自动重启，设置端口和存储映射：

/root/.config/clash/config.yaml，运行镜像

4、运行yacd镜像，只需要设置端口，运行

5、访问NAS地址加yacd端口，如果127.0.0.1:9090无法连接，输入nas地址加端口

6、NAS打开控制面板，选择网络，设置代理服务器，127.0.0.1，端口7890，此时打开Container Manager注册表，可以显示出列表，代表代理成功，局域网内设备设置NAS地址加端口就可以科学上网

BookLore

https://github.com/adityachandelgit/BookLore

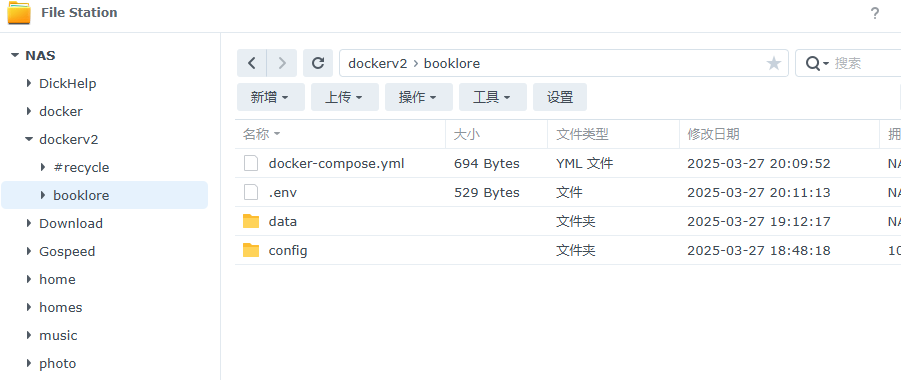

1、打开File Station，在docker文件夹下新建booklore文件夹，创建data、config目录，再创建docker-compose.yml文件和.env文件

2、docker-compose.yml文件键入代码：

services:
  booklore:
    image: ghcr.io/adityachandelgit/booklore-app:${BOOKLORE_IMAGE_TAG}
    container_name: booklore
    env_file:
      - .env
    depends_on:
      mariadb:
        condition: service_healthy
    ports:
      - "6060:6060"
    volumes:
      - ${BOOKLORE_DATA_PATH}:/app/data
      - ${BOOKLORE_BOOKS_PATH}:/books

  mariadb:
    image: lscr.io/linuxserver/mariadb:11.4.5
    container_name: mariadb
    env_file:
      - .env
    volumes:
      - ${MARIADB_CONFIG_PATH}:/config
    restart: unless-stopped
    healthcheck:
      test: ["CMD", "mariadb-admin", "ping", "-h", "localhost"]
      interval: 10s
      timeout: 5s
      retries: 5

.env文件键入代码：

# Docker Image Version
# This determines which version of the Booklore image to pull from GitHub Container Registry (GHCR).
# Use "latest" for the most recent version or specify a tag like "v1.0.0".
BOOKLORE_IMAGE_TAG=latest

# User and Timezone Settings
# PUID and PGID define the user/group running the container.
# TZ sets the timezone for correct time-related operations.
PUID=1000      # Default user ID (Check with `id -u` on Linux/Mac)
PGID=1000      # Default group ID (Check with `id -g` on Linux/Mac)
TZ=Etc/UTC     # Change this to your timezone (e.g., America/New_York, Asia/Kolkata)

# Database Credentials (Replace with a secure password)
# This password is used by MariaDB. Make sure to keep it secure.
MYSQL_ROOT_PASSWORD=your_secure_password

# Paths for Docker Volumes (Update these paths as per your system)
# These paths store persistent data for Booklore and MariaDB.
# Replace "/path/to/..." with actual directories on your system.
BOOKLORE_DATA_PATH=/path/to/booklore/data       # Example: /home/user/booklore/data (Stores app-related data)
BOOKLORE_BOOKS_PATH=/path/to/booklore/books     # Example: /home/user/booklore/books (Stores book files)
MARIADB_CONFIG_PATH=/path/to/mariadb/config     # Example: /home/user/booklore/mariadb/config (Stores database config)

# How to find your correct paths?
# 1. Choose a location where you want to store persistent data.
# 2. Create the required folders if they don’t exist.
# 3. Use `pwd` in your terminal inside those directories to get the full path.
# 4. Replace `/path/to/...` above with your actual paths.

3、修改.env文件中三个PATH目录

1
2
3

BOOKLORE_DATA_PATH=/volume2/dockerv2/booklore/data   //刚才第1步设置的目录
BOOKLORE_BOOKS_PATH=/volume2/share/booklore/books    //books目录，用来存放书籍，可以设置在NAS的共享目录，SMB访问后直接增删改查，比登录NAS页面上传方便
MARIADB_CONFIG_PATH=/volume2/dockerv2/booklore/config //刚才第1步设置的目录

4、进入NAS终端，执行chmod a+rw config data，给目录赋权
